Drawer Lock 137

Features

  • Drawer lock 137 is an extended version of 138.
  • It is available in keyed difference (KD), keyed alike (KA) and master key (MK) options.
  • Material is zinc die-cast body & cylinder.
  • The security level is 5 disc tumbler/wafer with 170 key changes.
  • It includes 2 brass keys and 1 cylinder ring.
  • Drawer Lock Plate can be purchased separately (Search DS-02 in the search box)

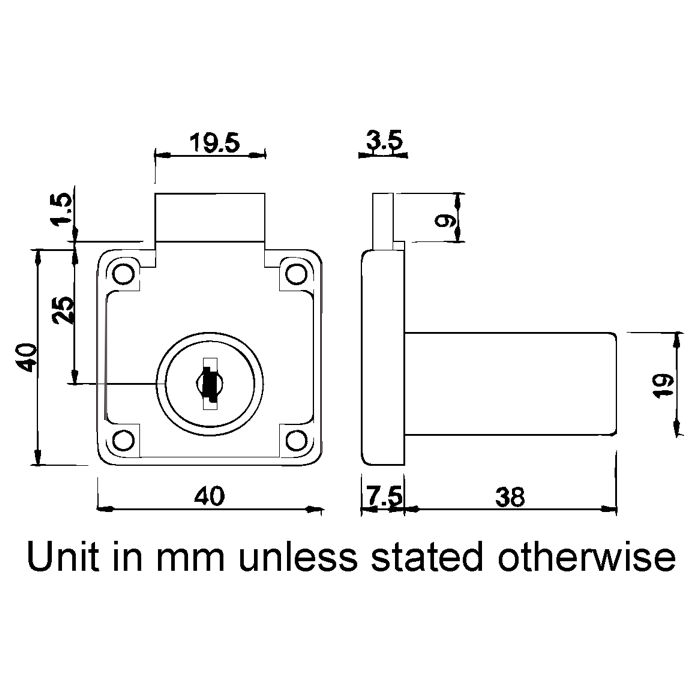

  • Dead Bolt travels 9mm
  • It is suitable for up to the wood thickness of 1-1/2" (38mm).
  • Drill hole size without rosette - 3/4" (19mm)
  • Drill hole size with rosette - 13/16" (20mm)
  • All keyed alike numbers could be used with another style of AMMA locks.

    Part No Description
    AMMA-137-38-KD AMMA Cupboard Lock Nickel Plated #137 38mm Long Keyed Difference (KD)
    AMMA-137-38-KA006 AMMA Cupboard Lock Nickel Plated #137 38mm Long Keyed Alike (KA) #006
    AMMA-137-38-KA183 AMMA Cupboard Lock Nickel Plated #137 38mm Long Keyed Alike (KA) #183
