Model No. Akfix-TCoat

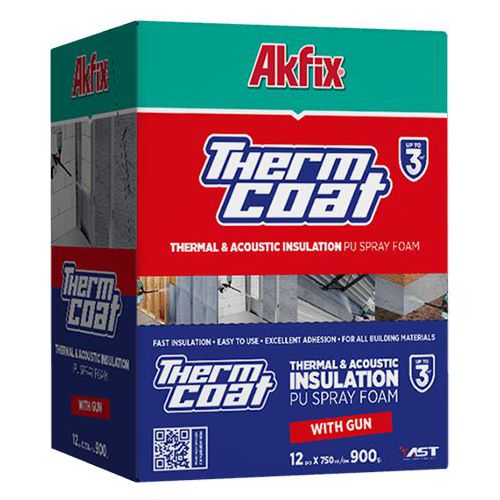

Akfix ThermCoat Thermal & Acoustic Insulation PU Spray Foam 930g 12can/case

Gun Insulation & Acoustic Foam


  • A PU Foam for top quality heat and sound insulation at buildings and houses.
  • Provides a unique, monolithic thermal insulation application without junctures, seams and gaps.
  • An innovative alternative to traditional building insulation methods such as polystyrene heat insulation boards, glass wool and rock wool.
  • Single-component product used with an applicator gun. It does not contain any propellant gases which are harmful to the ozone layer.
  • Excellent adhesion to all kind of building materials.
  • Can be applied easily to uneven, hard to reach surfaces where it is not possible to use traditional insulation materials.
  • Excellent thermal insulation value (0.025 W/(m.K).
  • Elimination of thermal bridges.
  • Elimination of the dew point.
  • Yield up to 32ft (3m) with 9/16" (1.5cm) thickness for one layer if applied from a distance of ~15.7" (40cm) with normal application speed.
  • No need to use mechanical fastening elements after use.

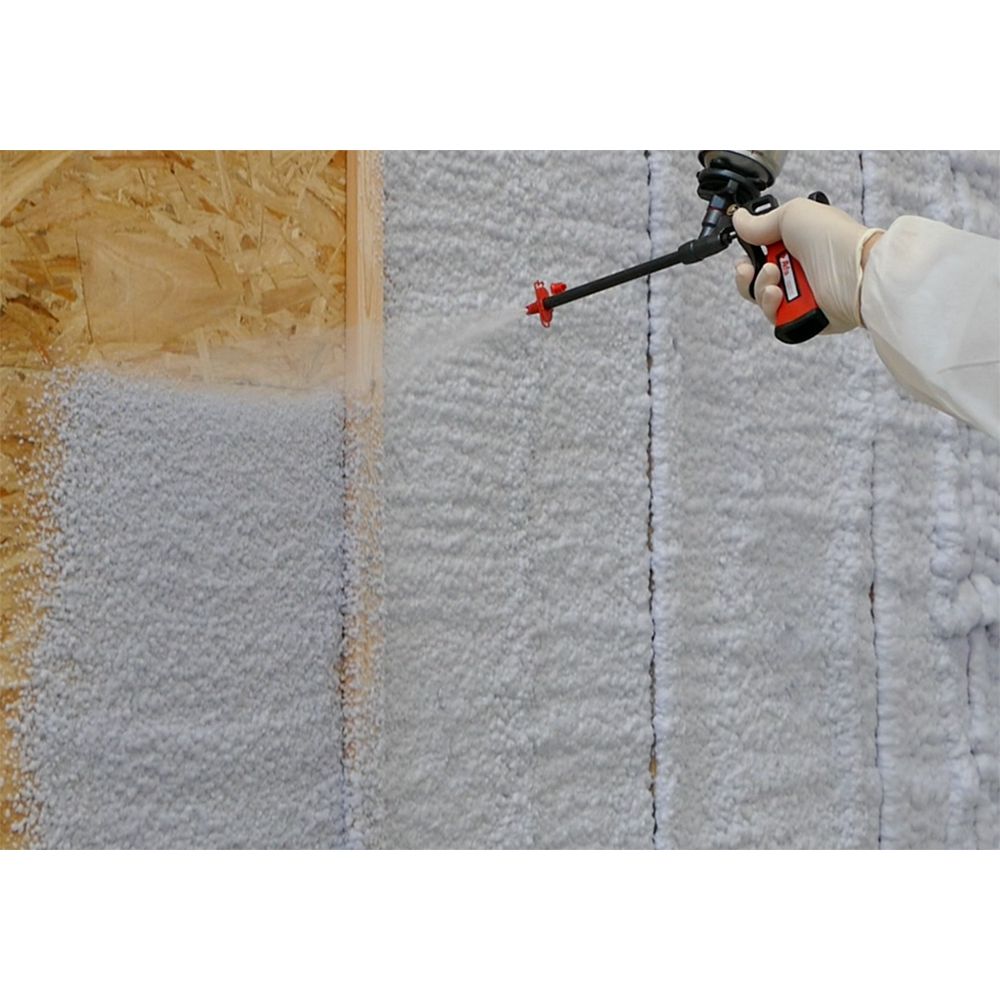

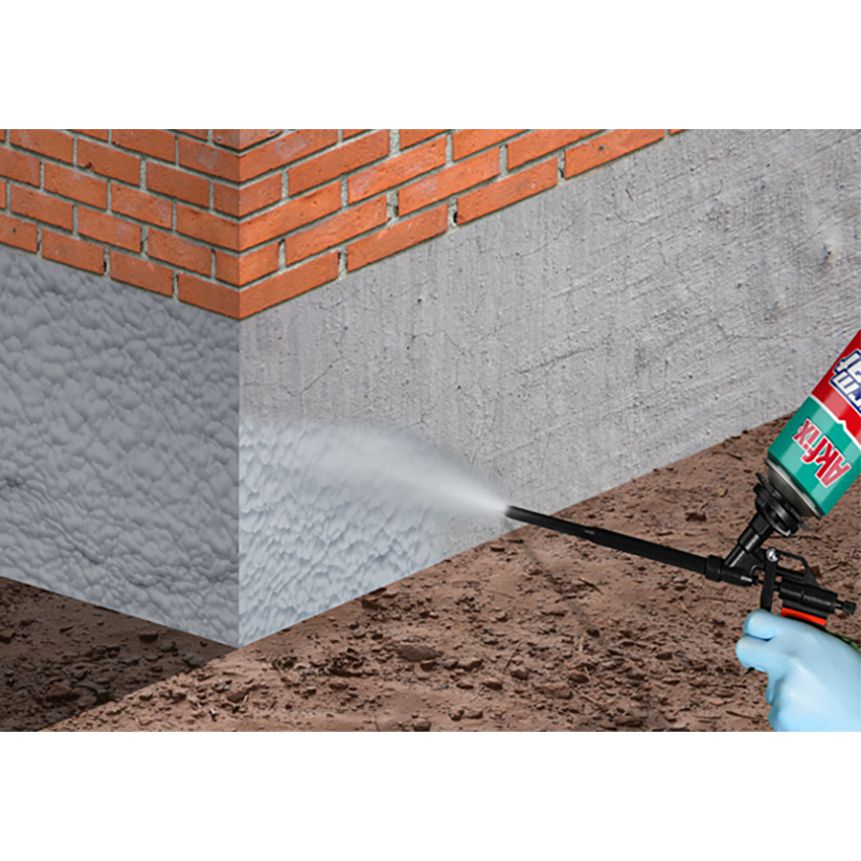

  • Application Areas: Roofs, attics, facades, foundations, basements, floors, interior walls, inter-floor overlappings, interior partitions, ceilings and cellars, Structural elements of buildings, balcony, loggia, doors, window slopes, pipes, canals and more

Suitable Material Concrete, OSB Panel, AAC Block, Metal, Drywall, Brick & Stone
R-Valve 5.66 Per Inch
Curing System Moisture Cure
Specific Gravity 151 kg/m (ASTM D1622)
Tack-Free Time 4 min (ASTM C1620)
Foam Colour Blue
Yield 32FT (3m) for 9/16" (1.5cm) thickness
Fire Class of the Cured Foam B3 (Din 4102-1)
Thermal Conductivity 0.025 W/m.K (at 20C) (DIN 52612)
Compression Strength 4.35psi (0.03 MPa) (DIN 53421)
Full Cure 24 Hours
Can Temperature min. 5C max +30C
Temperature Resistance -75C to +115C
Application Temperature +5C to +30C
Storage Temperature +6C to +24C (Temperature out of this range will shorten the life of the foam)
Application Instruction The can should be kept in room temperature for at least 12 hours before application.
