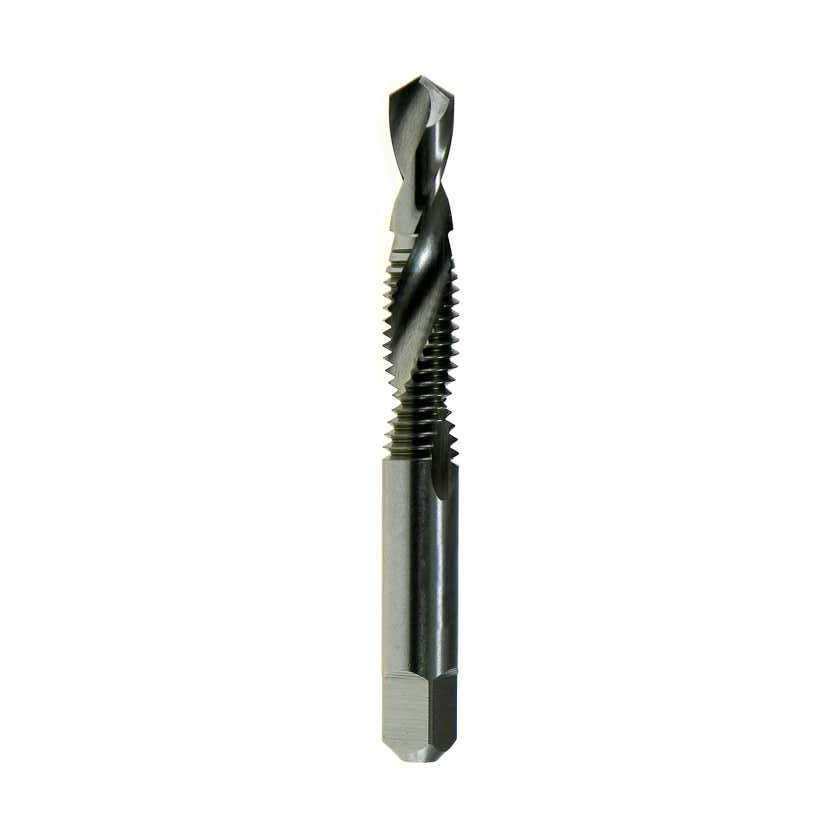

Drill-Tap


Features

  • Combination of Drill & Tap in one bit
  • Self-Centering allows the elimination of center drilling or center punching.
  • HSS = High Speed Steel
  • Can be used in a hand held power tool (at a very slow speed) or a fixed spindle machine tool
  • Drill part of the tool produces a hole correctly sized for approx. 75% of thread

Part No Description Length of Thread Available
Part No Desc. Length of ThreadAvailable
205A004C Drillco HSS Drill-Tap 4-40 UNC 9/16"Special Order
205A004F Drillco HSS Drill-Tap 4-48 UNF 9/16"Special Order
205A005C Drillco HSS Drill-Tap 5-40 UNC 5/8"Special Order
205A005F Drillco HSS Drill-Tap 5-44 UNF 5/8"Special Order
205A006C Drillco HSS Drill-Tap 6-32 UNC 11/16"Stocked
205A006F Drillco HSS Drill-Tap 6-40 UNF 11/16"Special Order
205A008C Drillco HSS Drill-Tap 8-32 UNC 3/4"Stocked
205A008F Drillco HSS Drill-Tap 8-36 UNF 3/4"Special Order
205A010C Drillco HSS Drill-Tap 10-24 UNC 7/8"Stocked
205A010F Drillco HSS Drill-Tap 10-32 UNF 7/8"Stocked
205A012C Drillco HSS Drill-Tap 12-24 UNC 7/8"Special Order
205A012F Drillco HSS Drill-Tap 12-24 UNF 7/8"Special Order
205A116C Drillco HSS Drill-Tap 1/4-20 UNC 15/16"Stocked
205A116F Drillco HSS Drill-Tap 1/4-28 UNF 15/16"Special Order
205A120C Drillco HSS Drill-Tap 5/16-18 UNC 1-1/8"Stocked
205A120F Drillco HSS Drill-Tap 5/16-24 UNF 1-1/8"Special Order
205A124C Drillco HSS Drill-Tap 3/8-16 UNC 1-1/4"Stocked
205A124F Drillco HSS Drill-Tap 3/8-24 UNC 1-1/4"Special Order
205A128C Drillco HSS Drill-Tap 7/16-14 UNC 1-7/16"Special Order
205A128F Drillco HSS Drill-Tap 7/16-20 UNC 1-7/16"Special Order
205A132C Drillco HSS Drill-Tap 1/2-13 UNC 1-21/32"Stocked
205A132F Drillco HSS Drill-Tap 1/2-13 UNF 1-21/32"Special Order

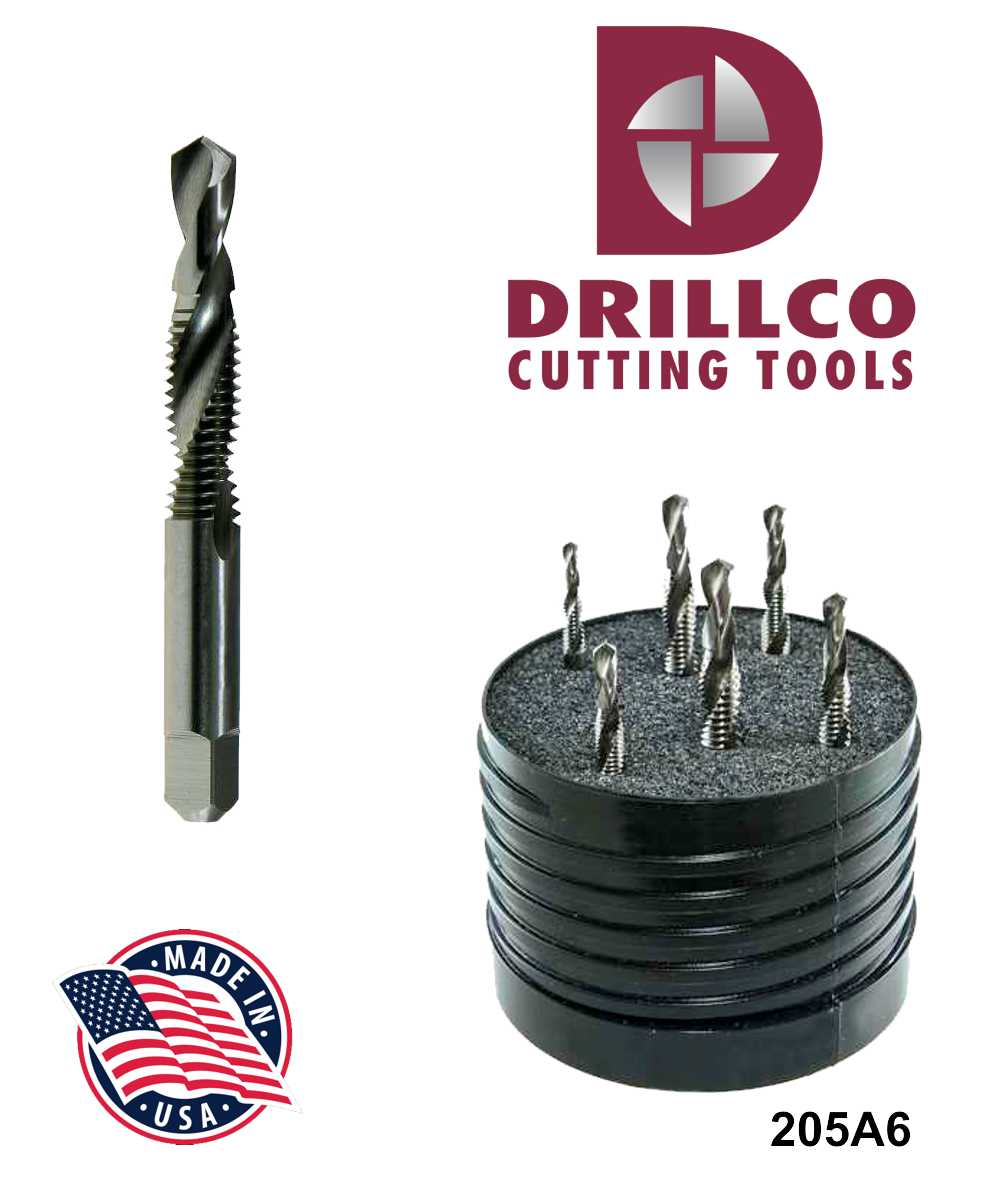

205A6 Drillco HSS Drill-Tap Set 6-32, 8-32, 10-24, 10-32, 12-24, 1/4-20Stocked
